| Stockcode | : | 658269 |

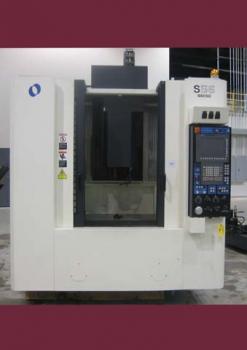

| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |
| Manufacturer | : | MAKINO |
| Model | : | S56 |
| Year | : | 2006 |
| Price | : | P.O.A. |
| Description | : | |
|
2,938 M/C POWER ON HOURS 1,345 MACHINE HOURS ON 1,356 MACHINE SPINDLE ON SPECIFICATIONS: TABLE SIZE: 39.4" X 19.7" TRAVELS X-AXIS: 35.4" Y-AXIS: 19.7" Z-AXIS: 17.7" SPINDLE: 20,000 RPM RAPID TRAVERSE: 1,574 IPM CUTTING FEEDRATE: 1,574 IPM MAXIMUM WORKPIECE: 39.4" X 19.7" X 17.7" MAXIMUM PAYLOAD: 1,100 LBS ATC CAPACITY: 20 HSK TOOL TO TOOL: 1.2 SEC. CHIP TO CHIP: 4.5 SEC. MAX. TOOL LENGTH 11.81" MAX TOOL DIAMETER: 5.12" MAXIMUM TOOL WEIGHT: 17.6 LBS WEIGHT, APPROX.: 15,000 LBS ELECTRICS: 230V, 3 PH, 60 CYCLE EQUIPPED WITH: PROFESSIONAL 5 CNC CONTROL SUPER GEOMETRIC INTELLIGENCE SGI.4 SERVO CONTROL FOR HIGH VELOCITY 3D INTERPOLATION MARPOSS LASER TYPE TOOL LENGTH MEASUREMENT INTEGRAL 20,000 RPM SPINDLE AUTOMATIC SPINDLE LUBRICANT TEMPERATURE CONTROLLER AUTOMATIC AIR BLOWER AIR DRYER BRIDGE TYPE CASTING CONSTRUCTION INCLUDES HAIMER SHRINKER MACHINE ABSOLUTELY IN MINT CONDITION......... | ||
