| Stockcode | : | 658257 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |
| Manufacturer | : | FANUC |

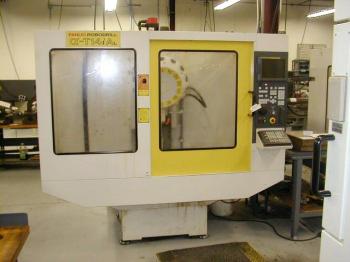

| Model | : | ROBODRILL T-14-IA-L |
| Year | : | 1999 |
| Price | : | P.O.A. |
| Description | : | |
|
SPECIFICATIONS: TABLE ............................... 33.5" x 15.25" TRAVELS X: ................................. 27.56" Y: ................................. 14.9" Z: ................................. 11.8" SPINDLE RPM ......................... 8000 RPM RAPID TRAVERSE ...................... 1890 IPM MAX TABLE LOAD ...................... 440 LBS MAIN MOTOR .......................... 7.5 HP SPINDLE TAPER ....................... BT30 TOOL CAROUSEL ....................... 14 ATC MAX TOOL LENGTH ..................... 7.87" MAX TOOL DIAMETER ................... 3.15" MAX TOOL WEIGHT ..................... 7 LBS TOOL CHANGE TIME .................... 1 SEC CAPABLE OF RIGID TAPPING AT UP TO ... 5000 RPM DISTANCE FROM TABLE SURFACE TO SPINDLE EDGE SURFACE: 5.91" TO 17.72" DISTANCE FROM THE FRONT SURFACE OF THE COLUMN TO THE CENTER LINE OF THE SPINDLE: 14.96" TABLE AREA: 33.46" X 15.35" LOAD CAPACITY: 551 LBS (UNIFORM LOAD) SPINDLE SPINDLE SPEED RANGE: 80 TO 8000 MIN-1 TYPE OF SPINDLE TAPER HOLE: 7/24 TAPER NO. 30 FEEDRATE RAPID TRAVERSE FEEDRATE: 1,890 IN/MIN (X,Y,Z) CUTTING FEEDRATE: .039" - 590.6"/MIN TURRET TOOL CHANGE SYSTEM: TURRET TYPE (SPINDLE INDEPENDENT FROM TURRET) TYPE OF TOOL SHANK: MAS BT30 TYPE OF RETENTION KNOB: MAS P30T-1 (45 DEG) TOOL STORAGE CAPACITY: 14 METHOD OF TOOL SELECTION: RANDOM SHORTEST PATH TOOL CHANGING TIME (TOOL TO TOOL): APPROX. 1 SEC OR APPROX. 1.4 SEC MOTOR SPINDLE DRIVE MOTOR: FANUC AC SPINDLE MOTOR 7.38 HP (10 MIN RATING) 4.96 HP (CONTINUOUS RATING) ELECTRICS: 220 VOLTS, 3 PH, 60 CYC MACHINE IS IN EXCELLENT CONDITION.... | ||
