| Stockcode | : | 658253 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |

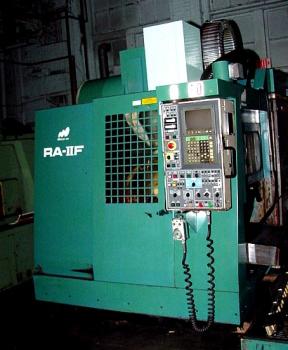

| Manufacturer | : | MATSUURA |
| Model | : | RA-IIF |
| Year | : | 1993 |
| Price | : | P.O.A. |
| Description | : | |
|
SPECIFICATIONS: CONTROL......................... YASNAC I80 PALLET LENGTH................... 23.6" PALLET WIDTH.................... 14.9" MAX. PALLET LOAD................ 550 LBS. NO. OF PALLETS.................. 2 TRAVELS: X-CROSS/LONG........... 23.62" Y-SADDLE............... 16.14" Z-SPINDLE/VERT......... 18.5" RAPID TRAVERSE.................. 945 IPM (X,Y) 708 IPM (Z) FEEDRATE........................ 393.7" SPINDLE: SPEED MIN RPM.......... 30 RPM MAX. RPM........................ 8,000 RPM MOTOR HP........................ 20 HP TAPER........................... BT-40 MAX. TOOL DIAMETER.............. 3.77" / 6.8" ADJ. EMPTY MAX. TOOL LENGTH................ 11.8" MAX. TOOL WEIGHT................ 22 LBS. TOOL CHANGE TIME................ 2 SEC. (TOOL TO TOOL) PALLET CHANGE TIME.............. 9 SEC. DISTANCE FROM FLOOR TO TABLE.... 40" MACHINE FLOOR SPACE............. 3469W x 3936D MACHINE HEIGHT.................. 112" MACHINE WEIGHT.................. 4500 kg EQUIPPED WITH: YASNAC I80 TSUDAKOMA 2 AXIS ROTARY TABLE 30 POSITION ATC AUTOMATIC PALLET CHANGER FULL ENCLOSURES SYNCHRONIZED TAPPING SPINDLE OIL COOLER HIGH PRESSURE COOLANT THRU SPINDLE (1000 PSI) CHIP CONVEYOR | ||
