| Stockcode | : | 658250 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |

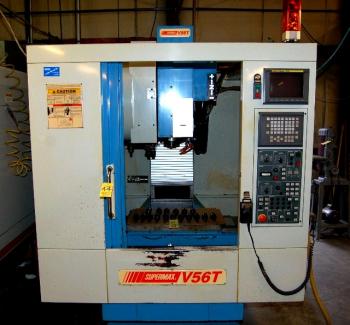

| Manufacturer | : | SUPERMAX |
| Model | : | V56T |
| Year | : | 1999 |
| Price | : | P.O.A. |
| Description | : | |
|
TABLE DIMENSIONS............. 27.55" x 16.53" TABLE LOAD CAPACITY.......... 661 LBS. AXIS TRAVELS X,Y,Z........... 22.04", 16.14", 17.71" SPINDLE MOTOR................ 3HP AC, 5HP 30min. SPINDLE TAPER................ BT 30 SPINDLE RPM.................. 45 ~ 12,000 RPM SPINDLE NOSE TO TABLE........ 4.3" ~ 22.04" SPINDLE CTR TO COLUMN........ 16.73" RAPID TRAVERSE............... 1417 IPM, 944 IPM Z CUTTING FEED................. 1 ~ 394 IPM NUMBER OF TOOLS.............. 16 ATC - ARM TYPE MAX. TOOL WEIGHT............. 10.7 LBS. MAX. TOOL DIMENSION.......... 7.87" SHIPPING DIMENSION........... 64" x 78" x 84" H MACHINE WEIGHT............... 7500 LBS. EQUIPPED WITH: FANUC 18M CONTROL RIGID TAPPING MANUALS | ||
| View all |
|
SUPERMAX (4) V56T (2) CNC Machining Centres (475) Vertical (370) |
United States
