| Stockcode | : | 658241 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |

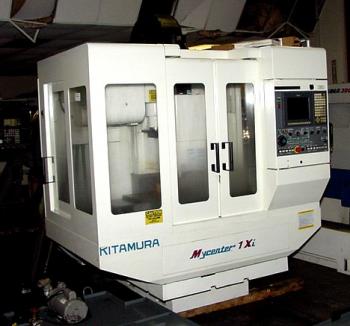

| Manufacturer | : | KITAMURA |
| Model | : | MYCENTER 1XI |
| Year | : | 2002 |
| Price | : | P.O.A. |
| Description | : | |
|
EQUIPPED WITH Yasnac I-80 CNC w/ (4) M Codes, RS232 15,000 RPM Spindle Rigid Tapping 20 Position ATC Full Enclosure Spindle Chiller Transformer All Available Manuals CATALOGUE SPECIFICATIONS: TABLE SIZE.................................... 14" x 30" TRAVELS.........................(X) AXIS - 20"(Y) AXIS - 14"(Z) AXIS - 16" SPINDLE NOSE TO TABLE ............... 5" - 20.9" MAX. TABLE LOAD CAPACITY..................... 530 lbs SPINDLE SPEED ................................ 150 - 15,000 RPM SPINDLE TAPER................................ #35 NST CUTTING FEED RATE, MAX............ 1417 IPM RAPID TRAVERSE RATES.....(X,Y) 1969 IPM (Z) 1417 IPM MOTOR............... .................................. 10/ 7.5 HP TOOL CHANGE TIME (tool-tool)...... 0.7 Sec (chip-chip)...... 2.8 sec FLOOR SPACE.................................... 94" x 81" x 104" WEIGHT, APPROX: .......................... 8,200 lbs | ||
| View all |
|
KITAMURA (11) MYCENTER 1XI (1) CNC Machining Centres (475) Vertical (370) |
United States
