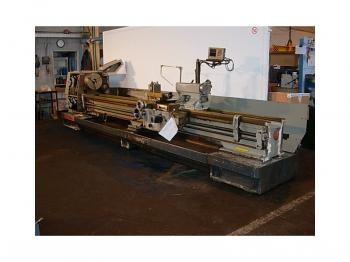

| Stockcode | : | 657239 |
| Type | : | Lathes |
| Subtype | : | Centre |
| Manufacturer | : | COLCHESTER |
| Model | : | MAGNUM 1250 |
| Year | : | - |
| Price | : | £ 24,950.00 GBP |
| Description | : | |
|
Module pitches (37): 0.3 - -24 MOD
Metric Pitches (70): 0.2 - 112mm Diametral Threads (41): 1 - 60 DP Whitworth threads (88): 1/4 - 112 TPI Spindle speeds (24): 6.3 - 1250rpm Total travel of Tailstock barrel: 190mm Total travel of top slide: 165mm Total travel of cross slide: 380mm Width of bedways: 480mm Spindle nose mounting: D1-11 Camlock Swing over cross slide: 390mm Swing over bed: 635mm DRO: Heidenhain 2 axis - ND 530 Max. Swing-Dia. In Gap (mm): 900 Center Distance (mm): 4000 Main Drive Power (KW/V/Hz): 15kw Spindle Bore (mm): 115mm Spindle Turning Speed Range: 6.3 - 1250rpm Centre Height: 315mm Approximate weight: 5000 kg Accessories: 3 & 4 jaw chucks, Drive plate. QCTP. : Steadies | ||
