| Stockcode | : | 654251 |
| Type | : | Gear |
| Subtype | : | Grinding |
| Manufacturer | : | MAAG |
| Model | : | SD 65 |
| Year | : | 1981 |
| Price | : | P.O.A. |
| Description | : | |
|

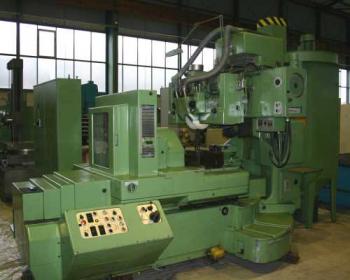

Type of machine Gear Grinding Machine
Type of control Conventional Technical details max. wheel diameter 650 mm gear width mm max. module 15 (22) min. module 1,5 number of teeth 10 - 200 min. gear diameter 90 mm Zahnschrägung max. 45 ° grinding slide stroke 490 mm grinding wheel diameter 200-280 mm grinding wheel - swivable 0-10 ° workpiece weight 30 - 50 -200 kg base circle dia. - max. 630 mm base circle dia. - min. 65 mm centre distance 413-621 mm feeds axial 0-2100 mm/min rapid traverse 4 m/min swivable table: power capacity 8,5 kW weight of the machine ca. 8 t dimensions of the machine ca. 4,6 x 3,06 x 3,15 m Additions Accessories Additional information Great capacity, smooth running, high efficiency and high precision through an automatic compensation of grinding wheel during the grinding process in steps of each 1-2 ?m. The SD 65 grinds spur- and helical cylindrical gears, pinions, master gears, shaving gears etc. With a most exact reproduction of the required profile and plain corrections in an automatic cycle. It grinds two flanks at a time within a dry grinding process without cracks. The SD 65 is supplied with: -Automatic work cycles, max. 15 cycles -Correction of tip and root, as well as crowning for profile and face direction -CBN-grinding wheels can be used Accessories: 53 indexing plates (92/93/94/95/96/98/99/100/2x102/106/2x108/110/111/113/114/2x118/120/122/123/126/128/130/132/136/138/2x140/142/144/2x146/148/150/2x152/154/156/158/160/162/164/168/170/172/174/176/180/182/184) 176 pitch blocks, 65 pitch blocks (blanks), 40 holding arbors, Dresser SA-280, Dust exhauster, 120 grinding wheels, 15 grinding flanges, Tool cabinet with accessories | ||
