| Stockcode | : | 651130 |
| Type | : | Miscellaneous |
| Subtype | : | Miscellaneous |
| Manufacturer | : | EDWARDS-TRUEFOLD |

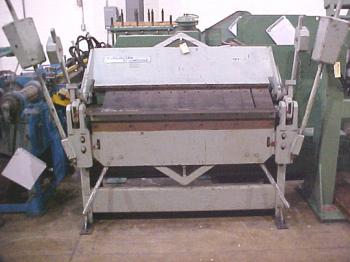

| Model | : | 414BP-FOLDER |
| Year | : | - |
| Price | : | P.O.A. |
| Description | : | |
|
CAPACITY in Mild Steel 4' X 14 GAUGE
MAXIMUM LIFT OF BEAM 2.4" MAX. DEPTH OF BOX OR PAN 8.2" MAX. ANGLE BEND (ONE OPERATION) 150 DEGREES WITH STANDARD FINGERS MINIMUM REVERSE BEND 3" WITH ANGLE BLADE FINGER ASSORTMENT NUMBER OF FINGERS - TOTAL 11. ( 5 OF 5", 4 OF 4" , 2 OF 3" TOTAL LENGTH 47") FEATURES: - FLOOR MODEL . - WELDED STEEL PLATE CONSTRUCTION AND THE FRAMES ARE WELL BRACED WITH ADJUSTABLE STRESS BARS TO GIVE MAXIMUM RIGIDITY AND RESISTANCE TO DEFLECTION WHEN WORKING AT TOP CAPACITY. . - 2.2" CLEARANCE UNDER FINGERS . - MANUAL OPERATED EQUIPPED WITH - TWO COUNTERWEIGHTS ARMS . - MANUAL BACKGAUGE . - SCALE FOR REPETITIVE FOLDING WEIGHT 2,030 LBS APPROX. DIMENSIONS 87" L. X 45" W. X 68" HT. (WITH ATTACHMENTS INSTALLED) SERIAL NUMBER 775W78/09/04 CONDITION USED (PRE-0WNED) FOB POINT OUR WAREHOUSE, MISSISSAUGA, ONTARIO, CANADA | ||
