| Stockcode | : | 648109 |
| Type | : | Sheet Metal |
| Subtype | : | Turret Punch Press |
| Manufacturer | : | AMADA |
| Model | : | OCTO 334H |
| Year | : | 1984 |
| Price | : | P.O.A. |
| Description | : | |
|

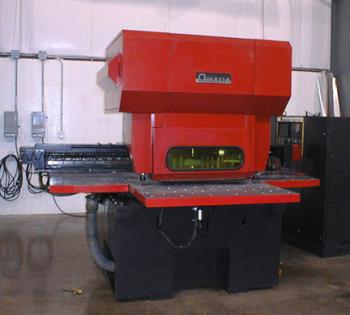

DESCRIPTION Multi - Stational CNC Punch
MODEL Octo 334H SERIAL NUMBER 3340236 CAPACITY 33 Ton MAXIMUM SHEET THICKNESS 1/4" MAXIMUM SHEET SIZE 78.7" x 29.5" ( with 1 reposition ) MAXIMUM MATERIAL THICKNESS 78.7" x 59.0"( with work piece turning ) TURRET CONFIGURATION 9 Stations (Thick ), (4) 1 1/4" Diam., (3) 1/2" Diam., (1) 3 1/2" Diam., (1) 1 1/4" Diam , Auto Index Station MAXIMUM TRAVERSE. THROAT DEPTH MAXIMUM HOLD DIAMETER COUNTER SPEED STROKE 1.26" MAXIMUM HIT RATE 150 HPM SPEED. 300 S.P.M. MAXIMUM FEED SPEED 1575 I.P.M. EQUIPPED WITH Fanuc Model 6M CNC Control with CRT Screen . Overload Protection . (1) Auto Index Station . Automatic Repositioning .. Air Clutch and Brake . Pneumatic Work Clamping . CNC Control ( 48"L x 28"W x 65"H) ELECTRICAL CONTROLS AND EQUIPMENT AC 5 HP. Main Drive Motor, 208v/3/60 . (4) DC Servo Drive Motors ( x,y,Turret, & Auto Index ) WEIGHT 21,600 Lbs. DIMENSIONS L/W/H 124" x 112" x 88" CONDITION USED UNDERPOWER | ||
