| Stockcode | : | 676433 |
| Type | : | Lathes |
| Subtype | : | CNC Combination |
| Manufacturer | : | HEYLIGENSTAEDT |
| Model | : | HEYNUMAT 4U X 3000MM |
| Year | : | 1997 |
| Price | : | £ 25,000.00 GBP |
| Description | : | |
|

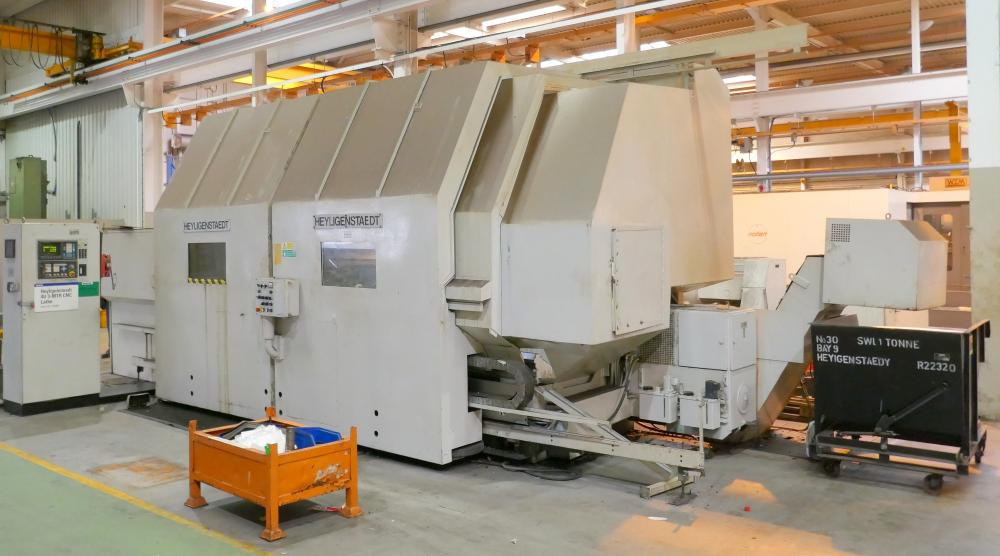

HEYLIGENSTAEDT HEAVY DUTY SLANT BED 2 AXIS CNC LATHE
Model HEYNUMAT 4U x 3000mm Year of overhaul and retrofit 1997 Serial number 00199830 Control system FANUC 0-T Swing over bed 1120 mm Swing over cross slide 960 mm Max. machining dia. 960 mm Max. machining length 3000 mm X-axis stroke 600 mm Chuck size 630 mm Spindle nose DIN 55021 size 15 Spindle bore 160 mm Spindle speed (2 range) 4 - 900 rpm Spindle drive motor 45/75 kW Type of turret 12 station VDI 60 Tailstock quill diameter 160 mm Tailstock quill stroke 160 mm Tailstock centre MT No. 6 Rapid traverse rate 10 m/min Overall size, approx.. 7960mm x 2935mm x 3230mm H. Machine weight, approx.. 27,500 kg Equipped with :- 630mm 3 Jaw Chuck. SMW Steady rest. Heavy duty steady rest 450 mm. Swarf conveyor. Machine manuals. | ||
| View all |
|
HEYLIGENSTAEDT (3) HEYNUMAT 4U X 3000MM (1) Lathes (281) CNC Combination (9) |
United Kingdom
    |  |
