| Stockcode | : | 676431 |
| Type | : | CNC Machining Centres |
| Subtype | : | Horizontal |
| Manufacturer | : | ALESA MONTI |
| Model | : | FT 45 TG |
| Year | : | 2011 |
| Price | : | £ 95,000.00 GBP |
| Description | : | |
|

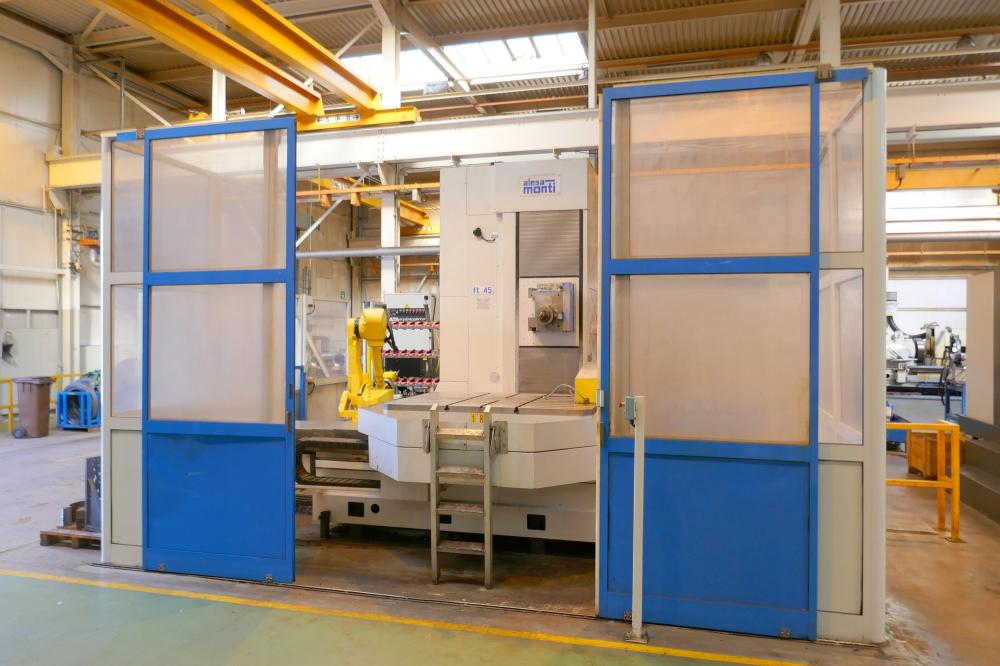

ALESA MONTI CNC HORIZONTAL CNC MILLING AND BORING MACHINE
Model FT 45 TG Year 2011 Control system HEIDENHAIN iTNC530 TRAVELS X axis 2000mm Cross travel of table. Y axis 1500mm Vertical travel of head. Z axis 1200mm Longitudinal travel of column. W axis 800mm Longitudinal travel of ram. ROTARY TABLE Size 1300 x 1700mm Load 6,000kg B axis 0.001 degree Working rotation 0.1 – 2 rpm SPINDLE Taper ISO DIN 50 Speeds 0 - 4000 rpm 2 range Motor 26 kW Milling spindle Dia. 128.57mm FEEDS X, Y, Z, W 0 – 15,000 mm/min Rapid 20,000 mm/min FANUC Robotized tool changer. Number 40 Max. weight 30 kg Weight 26,000 kg Complete with :- 20 bar through spindle coolant. Chip conveyor. Renishaw touch probe. | ||
| View all |
|
ALESA MONTI (2) FT 45 TG (2) CNC Machining Centres (475) Horizontal (148) |
United Kingdom
    |  |
