| Stockcode | : | 676358 |
| Type | : | Lathes |
| Subtype | : | Centre |
| Manufacturer | : | COLCHESTER |
| Model | : | MASCOT 1600 X 40 |
| Year | : | - |
| Price | : | £ 8,750.00 GBP |
| Description | : | |
|

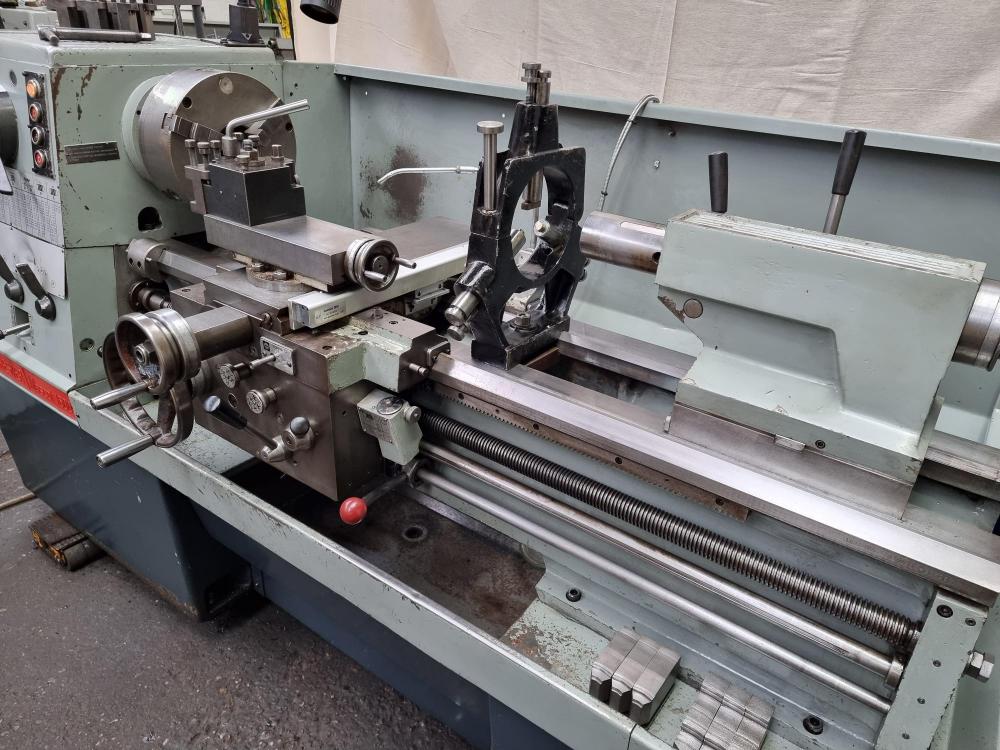

COLCHESTER MASCOT STRAIGHT BED CENTRE LATHE
Model MASCOT 1600 x 40” Serial number 7/0028/09636 CAPACITY Distance between centres 1500 mm 60” Swing over bed 433 mm 17” Swing over cross slide 267 mm 10.5” UNIVERSAL GEARBOX Longitudinal feeds per rev 0.06-1.0 mm 0.002 - 0.032 in Cross feeds 0.03-0.5 mm 0.001 - 0.016 in Whitworth threads (38) 2 - 72 tpi Metric pitches (40) 0.4 - 14 mm HEADSTOCK Spindle speeds (16) 20 - 1600 rpm Main motor 9.3 kW 12.5 hp Spindle nose 8” D.1 Camlock Bore through spindle 76 mm 3.0” TAILSTOCK Spindle diameter 89 mm 3.5” Spindle travel 229 mm 9” Taper of centre No. 5 Morse Machine complete with :- NEW Digital readout. 12” 3-jaw chuck 3 point stationary steady. Quick change toolpost with toolholders. Saddle stop. Metric dials. Coolant. | ||
| View all |
|
COLCHESTER (37) MASCOT 1600 X 40 (1) Lathes (282) Centre (78) |
United Kingdom
    |  |
