| Stockcode | : | 676341 |
| Type | : | Lathes |
| Subtype | : | Centre |

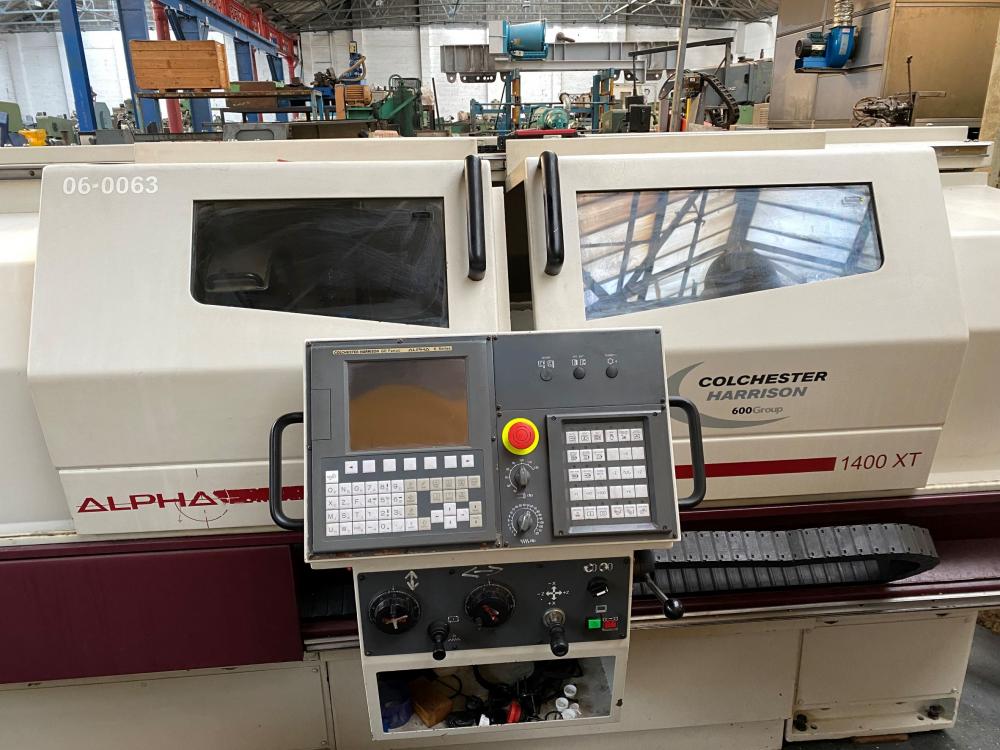

| Manufacturer | : | HARRISON |
| Model | : | ALPHA 1400XT |
| Year | : | 2007 |
| Price | : | P.O.A. |
| Description | : | |
|
Distance between centres 1250mm
Swing over bed (saddle wings) 400mm Swing over cross slide 246mm Swing in gap 585mm Spindle bore 55mm Spindle nose Camlock D1-6 Taper in nose bush No. 4 MT Spindle speeds: low range 1-297rpm medium range 1-861rpm high range 1-2700rpm Tailstock taper No. 5 MT Overall length 2900mm Overall width 1700mm Overall height 1500mm Approximate weight 2200kg | ||
