| Stockcode | : | 675963 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |
| Manufacturer | : | XYZ |
| Model | : | 1510 VMC |
| Year | : | 2008 |
| Price | : | P.O.A. |
| Description | : | |
|

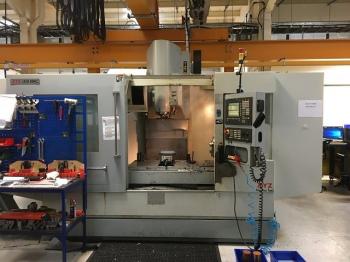

This 1.5 meter X Axis Traveling VMC is offered to the market in fantastic condition, fitted with Siemens 810D control with shopmill programming and 24 tool side mount rapid tool changer. Specification: Seimens 810D Control Capacity: X travel: 1500mm Y travel: 600mm Z travel: 600mm Table size: 1600 x 600mm Spindle centre column: 625mm Spindle to table: 150 - 754mm Column front to table: 345 - 949mm Rapid feed XYZ axis: 16M/min Box Way Cutting feed rates:1 - 16000mm/min Max Table load: 1200kg T slot size: 18mm T slot number & patch: 5 @ 75mm Spindle speed: 8 - 8000 rpm Spindle motor: 20hp Spindle taper: BT40 Tool magazine capacity: 24arm type Tool change time tool to tool: 2.5 sec max tool diameter: 100mm Max tool Weight: 7kg Coolant capacity: 200L Ball screw size (grade C3): 40mm P10 Main voltage: 415V Main motor: 11kW Other motor: 7.6kW Total motor: 18.6kW 3 Phase: 5.0hz Weight: 9500kgs Footprint W x D x H: 4200 x 3130 x 2800mm | ||
| View all |
|
XYZ (30) 1510 VMC (1) CNC Machining Centres (475) Vertical (370) |
United Kingdom
