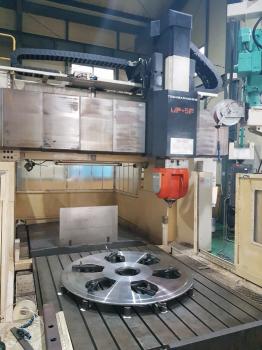

5-Axis Double Column Milling Centre for roughing and finishing
2002. Siemens 840D CNC control.
Table size 2500 x 3000 mm. Table load max. 10000 kg.
Distance between columns 3100 mm. Distance spindle-table max. 1500 mm.
X 3000 mm. Y 3100 mm. Z 715 mm.
2-Axis NC-Milling head. A-Axis +/- 95°. C-Axis +/- 200°.
Spindle I : for roughing. HSK-A100. 26/30 KW. 10000 rpm. 286 Nm.
Spindle II : for finishing. HSK-A63. 12/15 KW. 30000 rpm. 50 Nm.
60-station ATC. Automatic spindle changer.
V(F)-6384
