| | PRIMERO CNC BED TYPE MILLING MACHINE POWERFUL ANILAM 3000M CONTROL Table surface 300 x 1250mm X Axis travel 890mm Y Axis travel 470mm Z Axis travel 530mm Rapid traverse 5000mm/min Spindle BT40 6000RPM (Programmable) C-Tech drives & motors Machine weight 2500kgs Machine size 1500W x 2700D x 2300H head down Complete with tooling, manuals & spares
|
|
|
| | MEDDINGS 4 POSITION TABLE WITH DRILLS 2 OFF MEDDINGS PACERA M4 1 OFF MEDDINGS PACERA L2 1 OFF MEDDINGS PACERA L1 SPECIFICATION Pacera M4 2MT (7/8 ) with back gear 80-4000rpm (10) Pacera L2 2MT (7/8 ) 500-4000rpm (5) Pacera L1 (1/2) 500-4000rpm (5) Table size 52 X 18 with T Slots
|
|
| |

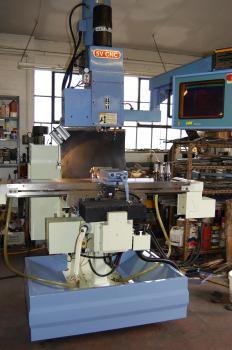

| HEAVY DUTY 3 AXIS CNC KNEE MILL Table Surface 300 x 1473mm X-axis Travel 1000mm Y-axis Travel 380mm Quill Travel 140mm Spindle to table surface 470mm Knee travel 470mm Spindle motor 7.5HP Spindle 60-4000RPM Spindle taper BT40 Rapid feed rate 7000mm/min Cutting feed rate 5-3500mm/min FEATURES Full 3-axis simultaneous CNC control Mitsubishi AC digital motors & drives motor
|

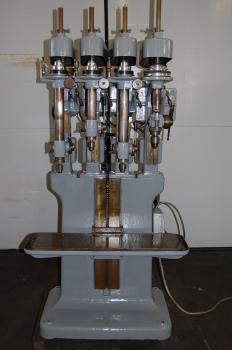

| CORONA POLLARD BANK OF 4 DRILLS MODEL 12EX RISE & FALL TABLE 23” X 10” 3 DRILLS WITH A CAPACITY OF 0-5/16” WITH SPEEDS OF 1900/3340/6050 1 DRILL WITH CAPACITY OF 0-3/8” 3 phase supply is required.
|
|
|
| |
| |
Weald Enterprises is a family business which was founded in 1963 and has been supplying and servicing machine tools and associated equipment to companies throughout the UK for over 40 years. Our showrooms in Dartford have convenient parking, and are within 2 miles of the M25. For customers using the train we are very close to Dartford station.
We hold stock of new and used machinery, all of which can be demonstrated under power. We are sole UK agents for serveral machine tool manufacturres and can supply the majority of new equipment both CNC and conventional. We have many contacts throughout the industry, enabling us to offer technical support and spares for most machinery.
|
| | CAPACITY Standard Table Size 50 x 12 1270 x 305 mm Table Travel X Axis 30 760 mm Saddle Travel Y Axis 15 380 mm Heavy Duty MillSlide® Travel Z Axis 5.25 133 mm Quill Travel 6 152 mm Throat Spindle to column, adjustable 15.3 – 27.5 390–700 mm Spindle to Table Top Quill up 0 - 21 0 – 535 mm Optional Riser Block Not removable 4 100 mm Maximum Table Load 1500 lbs. 680 kg |
|
|
